FRANKENRAIL
"FARFRUMLOSIN"

The car is back from Powedercoating and the results are spectacular. Bright red with grey hammertone accents. Here's some shots of the re-assembly and turbocharger buildup:

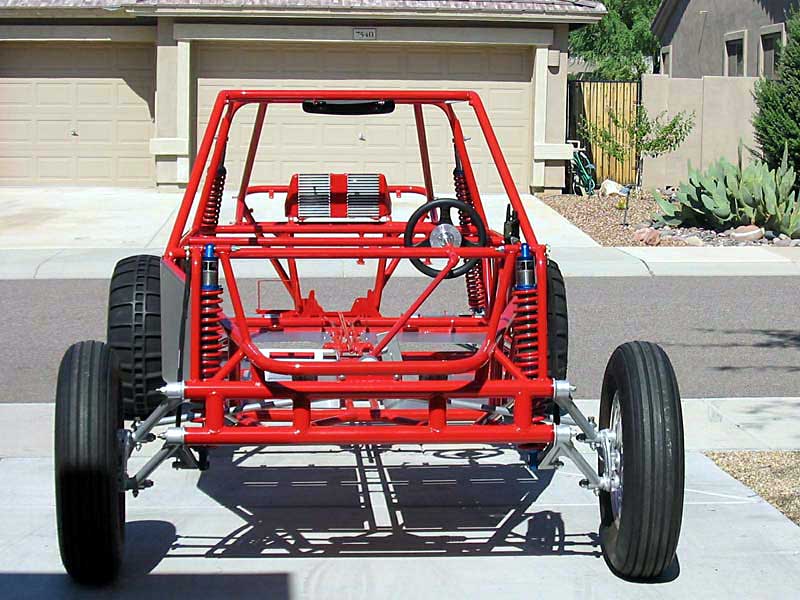

	Here's the car back from the powdercoater and rolling. Looks great!

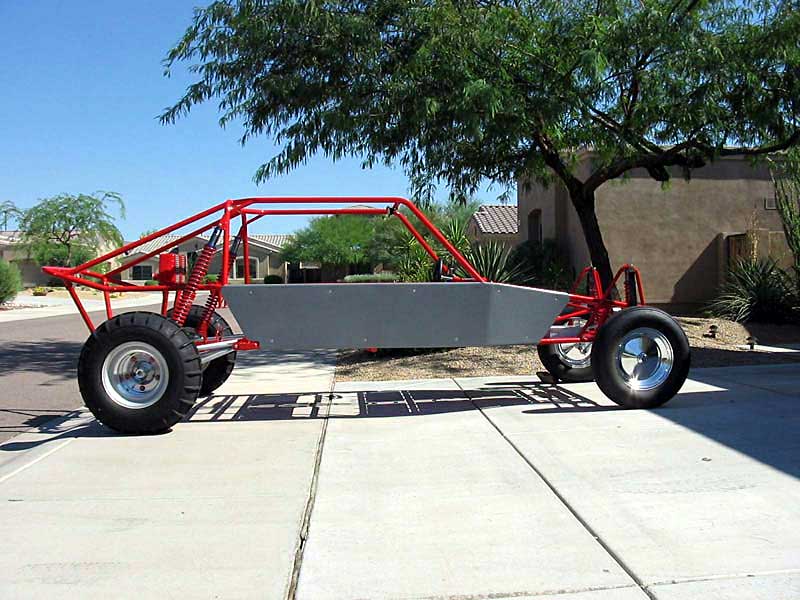

	The side panels and floor have been hammertone powdercoated in grey to match the seats.

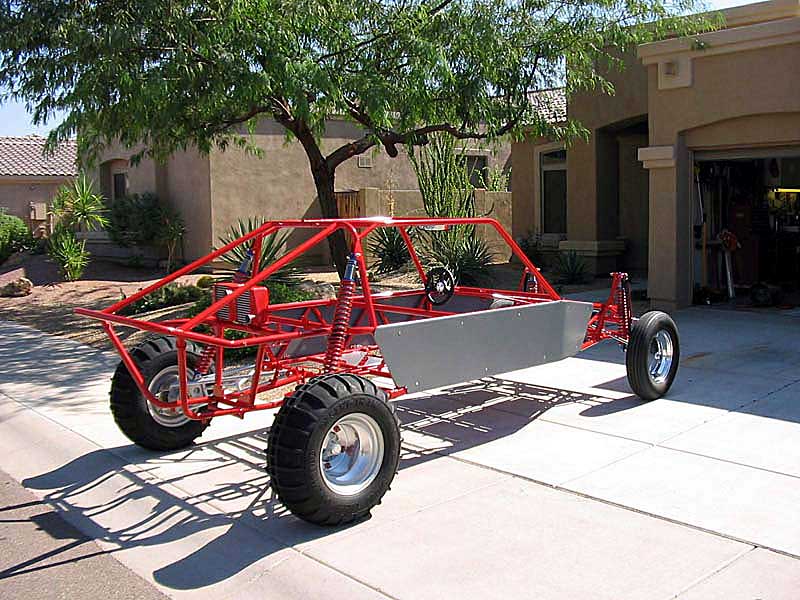

	Here's a rear view of the car

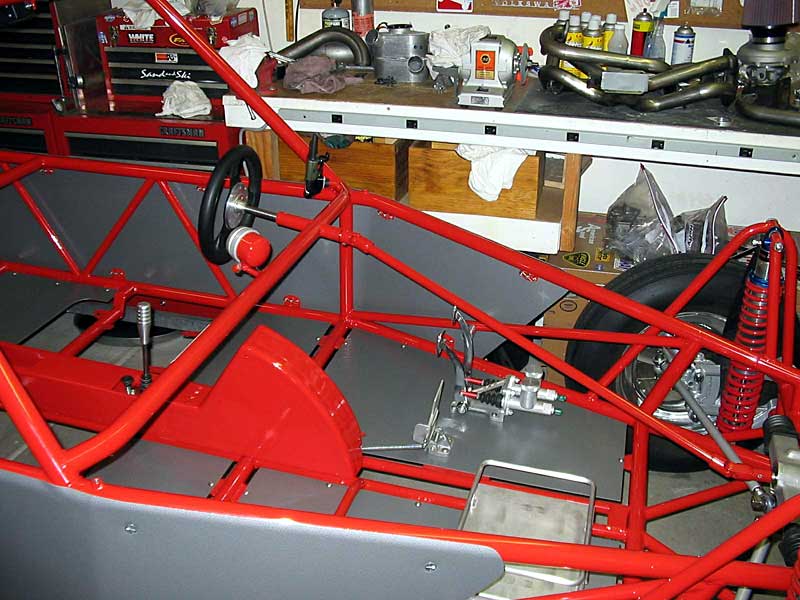

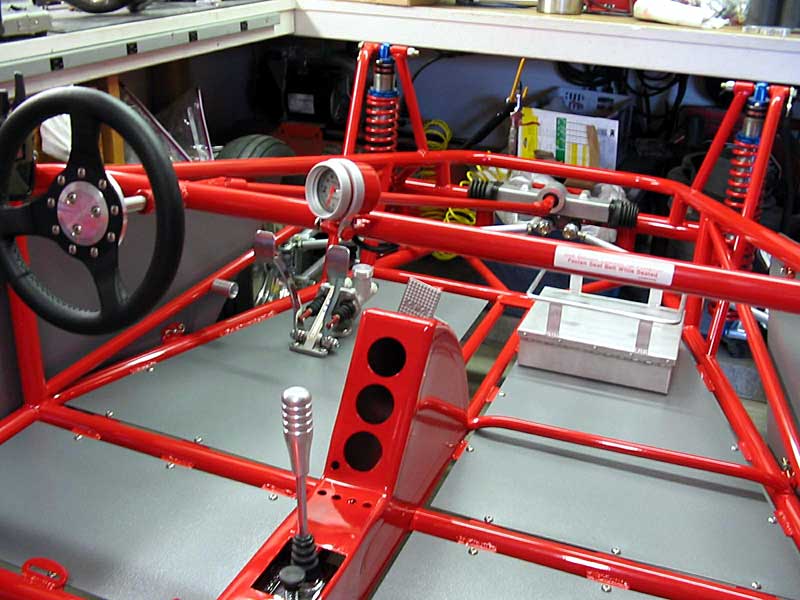

	The interior. Mike took a cheap 3-hole aluminum console and had a long piece welded to it to make a car-length console to cover the shift rod, brake tubes and wiring.
	here's another view

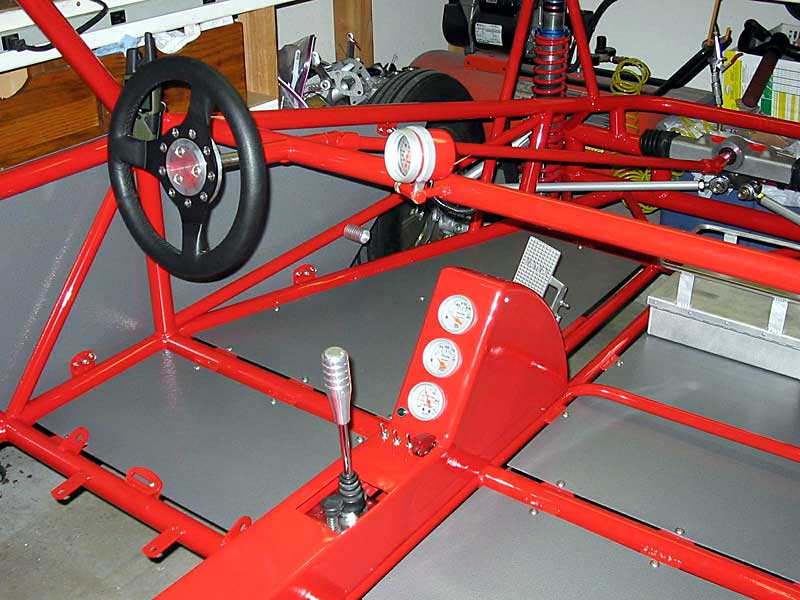

	The gauges will be wired and installed shortly

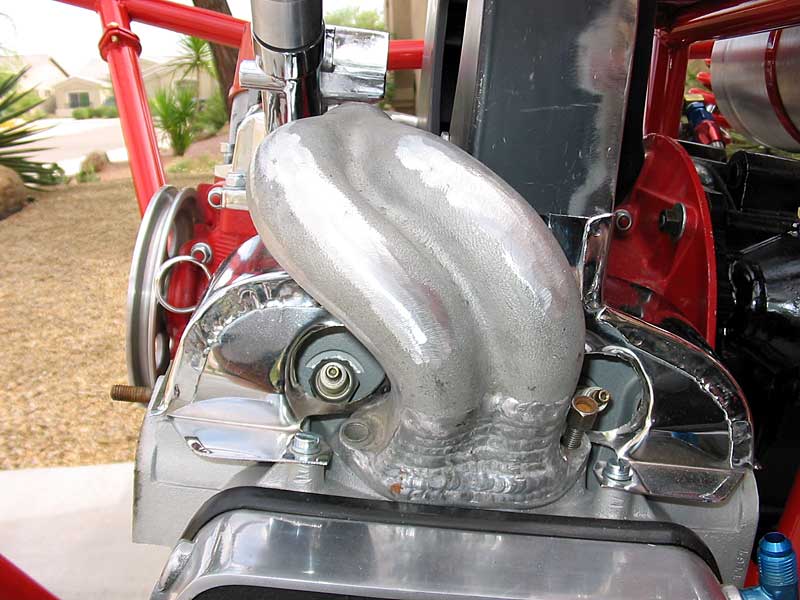

	These are the welded and match ported end castings for the single Weber 44 carburetor that will be used in the blow-through turbo setup. Plans for a dual carb blow through were scrapped when Mike discovered how worn the throttle shafts were in the carbs he had been using.

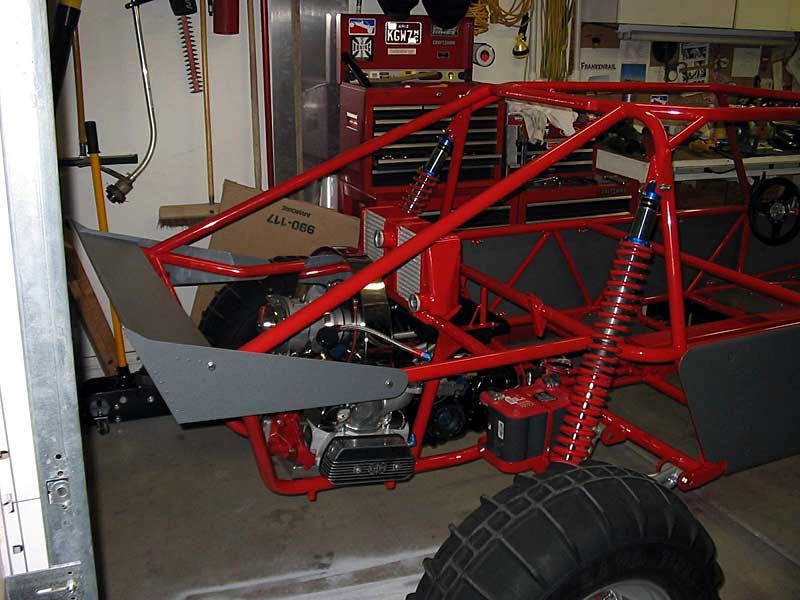

	This is the wing, powdercoated and ready to go

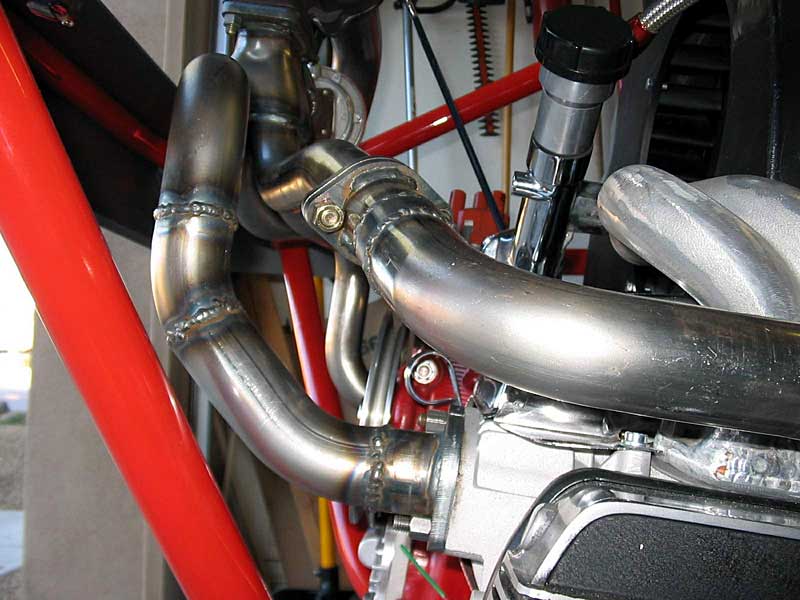

	Here's the modified turbo exhaust

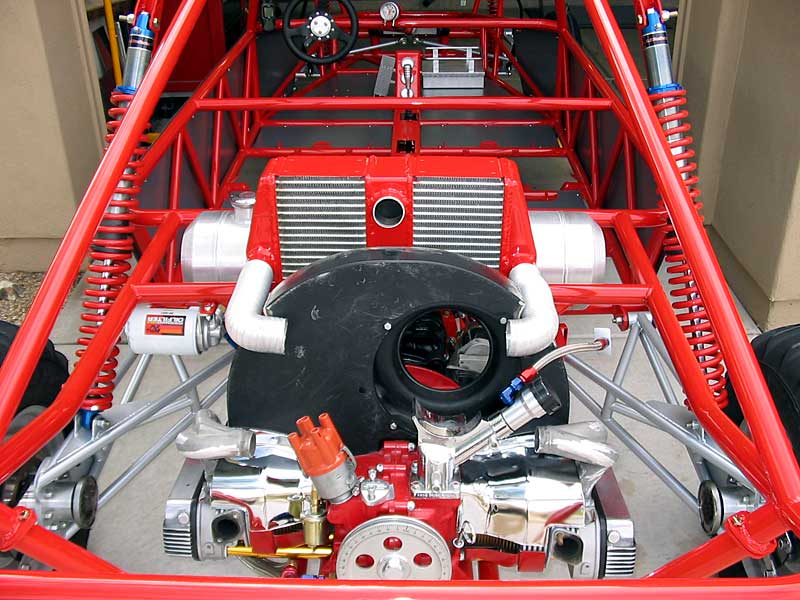

	This is a mock-up of the notched fanshroud and intercooler tubing

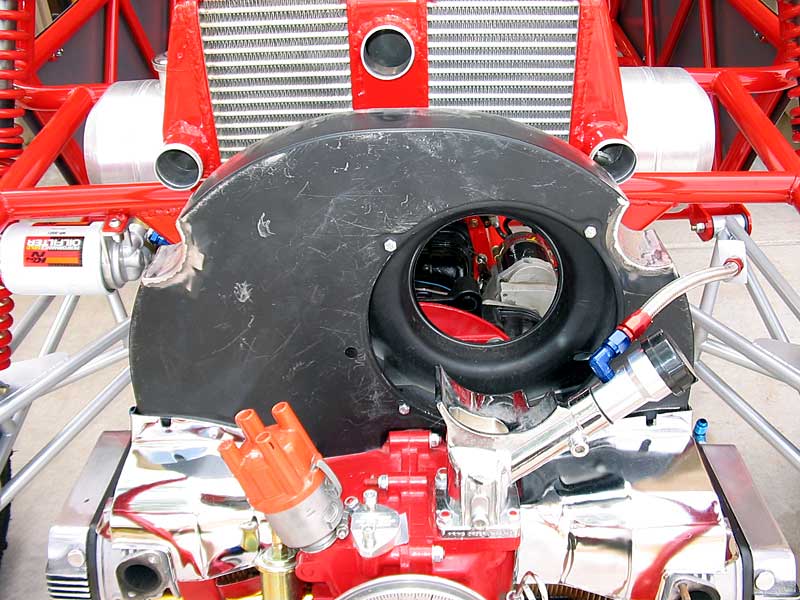

	A closer view of the shroud, notched for the intercooler tubing

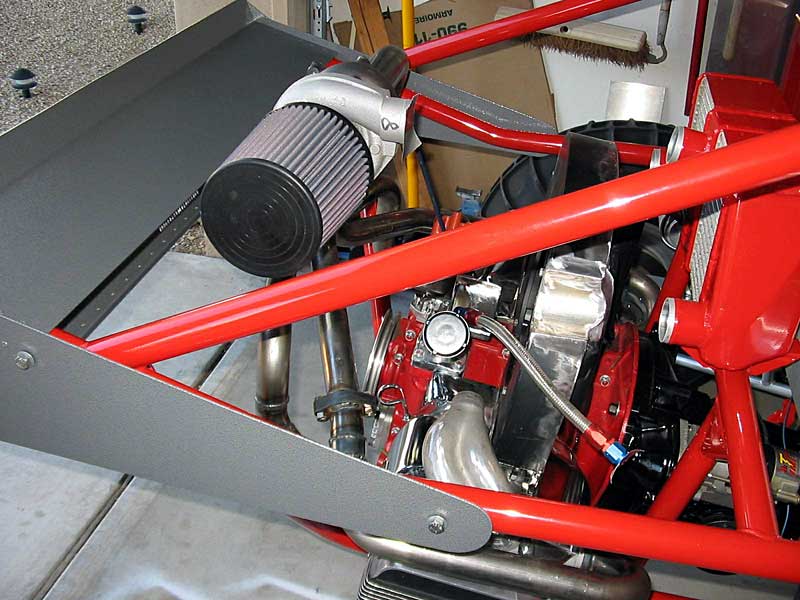

	A mock up of the turbo

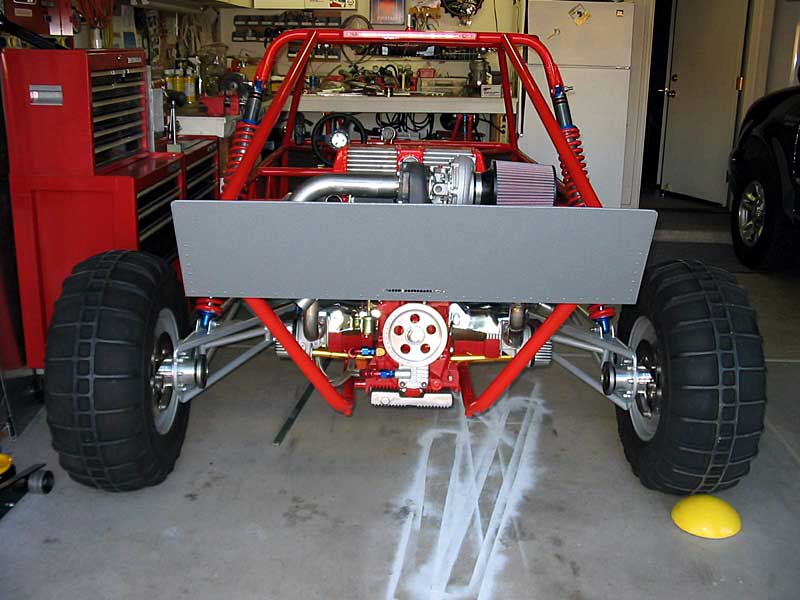

	Back view of the car and wing

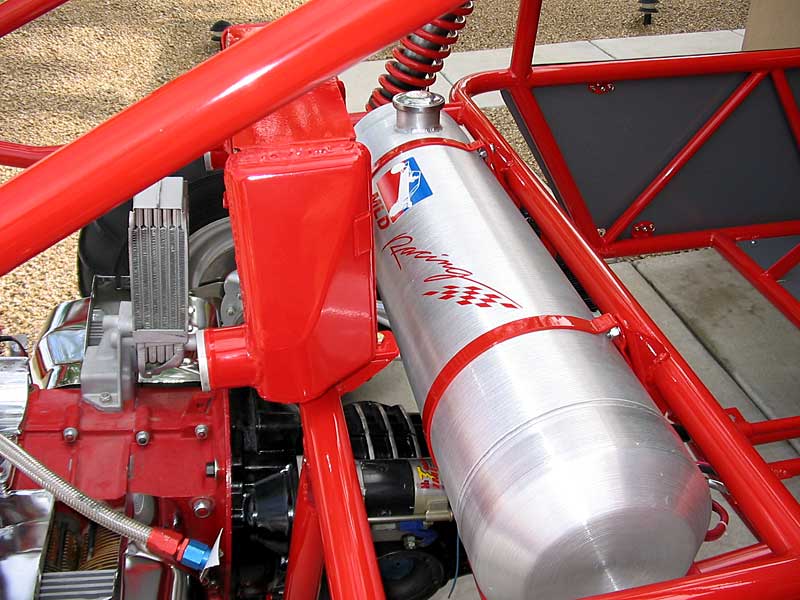

	The tank with obligatory MLD logo sticker

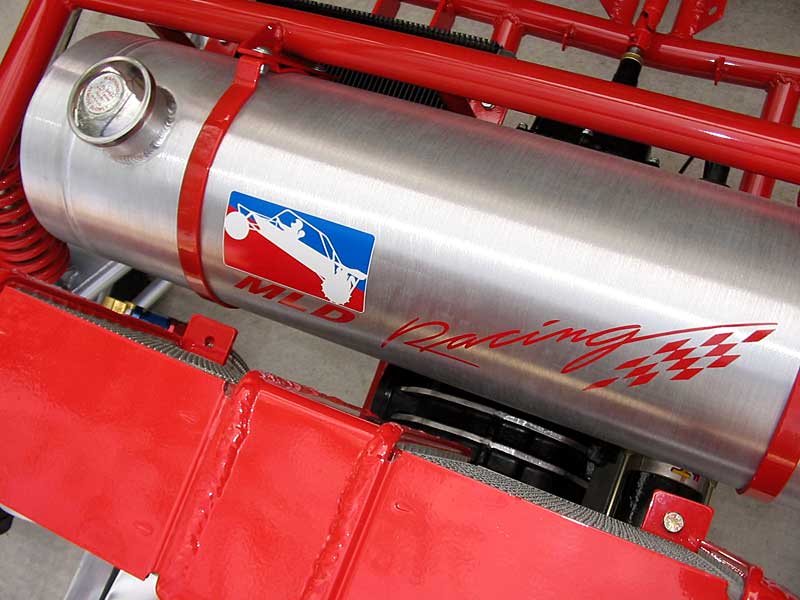

	'nother view of the tank
